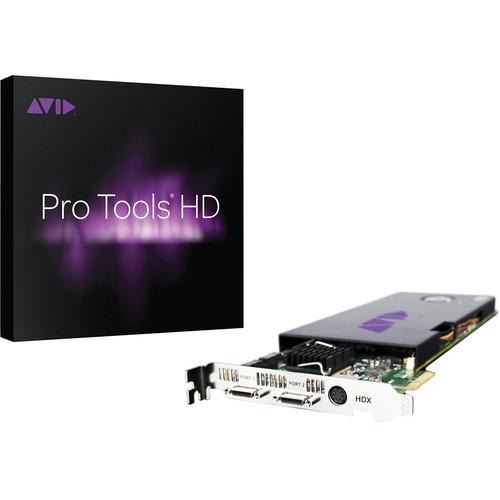

User Manual for Avid Pro Tools HD TDM System Trade Up to HDX Core with Pro Tools | Ultimate Perpetual License Click to enlarge the picture
Contents of the user manual for the Avid Pro Tools HD TDM System
- Product category: Audio Interfaces & Systems Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Audio Interfaces & Systems
|
User manual for the Avid Pro Tools HD TDM System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|
Product description The Avid Pro Tools HD/TDM System Trade Up to HDX Core with Pro Tools | Ultimate Perpetual License lets you trade in your legacy HD/TDM System for a Pro Tools | HDX Core card, a full perpetual license version of Pro Tools | Ultimate (offered as a download), and a 3-year Software Updates and Support Plan.The Pro Tools | HDX PCIe card brings high-speed PCIe connectivity to your Pro Tools | Ultimate system to nearly eliminate latency and provide 64 channels of simultaneous I/O at 24-bit / 192 kHz. The card easily installs into your existing tower/desktop computer and significantly reduces any distracting delay while recording, leading to a more comfortable experience when performing in the studio.To get a full 64 channels of I/O, the Pro Tools | HDX Native PCIe card allows you to connect up to four, 16-channel Pro Tools | HD audio interfaces. Two of the interfaces connect directly to DigiLink Mini ports 1 and 2, and the other two interfaces connect to the expansion ports on those Pro Tools | HD audio interfaces.Pro Tools | Ultimate is designed for audio and post pros who need maximum track counts, high-level performance, and surround sound. It provides powerful and efficient tools to create music or sound for film/TV, and allows you to connect with a premier network of artists, producers, and mixers around the world via Avid Cloud.The 3-year Software Updates and Support Plan provides access to the latest Pro Tools releases, including updates and upgrades, 25 bonus plug-ins, and priority support (renewable after three years). Note: Eligible legacy Pro Tools | HD systems include any TDM-based Pro Tools | HD or Pro Tools | HD Accel system. To qualify for this product, you must exchange your old system. Audio interfaces are available separately.
Users who wish to extend the upgrade and support components for another year after the initial 3-year period has expired need to purchase the Pro Tools | Ultimate 1-Year Software Updates & Support Plan Renewal for perpetual license. - Why Upgrade to Pro Tools | HDX
-
- Get up to 5x more power per card than with Pro Tools | HD Accel
- Create larger mixes with up to 256 audio tracks per card (up to 768 tracks total)
- Double your I/Os with up to 64 channels of I/O per card (up to 192 channels total)
- Take advantage of the latest features in Pro Tools | Ultimate software
- Record and mix in higher 32-bit, 192 kHz resolution, with more headroom
- Track and monitor with lower latency
- Handle plug-in-heavy mixes easily with 4x more automatic delay compensation
- Capture audio in pristine clarity
- Pro Tools | HDX PCIe Card
-
- Installs into your existing tower, desktop computer, or chassis, for dedicated studio use (Mac, Windows)
- Near-zero latency
- Includes two DigiLink Mini ports for connecting two audio interfaces
- One DigiSerial port for connecting a SYNC peripheral
- Supports up to 64 channels of audio I/O
- Supports up to 256 tracks with Pro Tools | HD software
- Sessions up to 24-bit and up to 192 kHz
- On-board DSP processor for mixing and plug-in processing
- Includes an HDX TDM cable (SATA cable) to connect a pair of HDX cards in your system
- Includes two custom power cables, one for Mac and one for Windows
- Includes a 12' DigiLink Mini cable for connecting the card to an audio interface
- Pro Tools | Ultimate Software
-
- 64 channels of I/O
- 32-bit / 192 kHz sound quality
- Up to 256 audio tacks
- Up to 256 instrument tracks
- Up to 512 MIDI tracks
- 2 GB loop library included
- 60+ instrument/effects plug-ins
- Play/edit HD video in timeline
- Support for Dolby Atmos 7.1 surround sound
- Music notation tools
- Standalone operation
- Includes 1-year upgrade and support plan
- Mac, Windows, AAX native, Audiosuite
In the Box Avid Pro Tools HD/TDM System Trade Up to HDX Core with Pro Tools | Ultimate Perpetual License Pro Tools | HDX PCIe Card Custom Power Cable for Mac Custom Power Cable for Windows HDX TDM Cable 12' DigiLink Mini cable Software Activation Card for Pro Tools | Ultimate Software (Perpetual License, Download) Limited 1-Year Warranty for Card Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Pro Tools HD TDM System Trade Up to HDX Core with Pro Tools | Ultimate Perpetual License in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9920-65376-00 Specs | | | System Requirements | Qualified Mac or Windows computer running Pro Tools | Ultimate software | | Ports | 2 x DigiLink Mini ports
1 x DigiSerial port (8-pin mini-DIN) | | I/O | Supports up to 64 channels of I/O for direct-to-disk recording and playback | | Tracks | Supports up to 256 tracks | | Audio Resolution | Up to 24-bit
Up to 192 kHz | | Processor | Onboard DSP | | | | System Requirements | Mac OS X 10.9.5, 10.10.5, 10.11.6, 10.12.2
Intel Core i7 processor (Ivy Bridge, Haswell, Westmere recommended)
8 GB RAM (16 GB or more recommended)
15 GB disk space for installation
2 GB additional space required for loop library installation (optional)
USB port for iLok 2 or iLok 3 authorization (iLok included)
PCIe slot for HDX or HD Native card (including one power connection on motherboard) or Thunderbolt port for HD Native, supported PCIe chassis or Core Audio-supported audio device
Internet connection for installation
Supports 64-bit AAX Native, AAX AudioSuite plug-ins
Windows 7 (Home Premium, Professional, Ultimate 64-bit Editions), Windows 8/8.1 (Standard, Pro 64-bit
Intel Xeon processor
Editions), Windows 10 (Home, Pro, Enterprise 64-bit Editions)
8 GB RAM (16 GB or more recommended)
15 GB disk space for installation
2 GB additional space required for loop library installation (optional)
USB port for iLok 2 or iLok 3 authorization (iLok included)
PCIe slot for HDX or HD Native card (including one power connection on motherboard) or ASIO-supported audio device
Internet connection for installation
Supports 64-bit AAX Native, AAX AudioSuite plug-ins |
